Bighead (HA-1) Mobile Bass Amp
Mobile Amp and Audio Interface
The PJB BigHead is not big at all. In fact it is barely larger than an iPhone. The “Big” is about the sound. It functions first as an awesome bass headphone amplifier with 2 band EQ ( +/- 18db @ 60 Hz and +/- 18dB @ 5KHz) set for optimization of all kinds of bass instruments.
Unlike consumer electronic MP3 players and smartphones that have very small power output of around 20 milliwatt to drive headphones, the BigHead has more than 10 times the power. This contributes to a far more exhilarating listening experience with increased resolution and dynamics. Even if you are just listening to music, the BigHead will be a great improvement to your regular headphones, adding more listening pleasure.
A more important function of the BigHead is being a recording tool both in digital and analog. As an Analog Digital Converter, it has the finest BURR BROWN digital components. The USB out is 48KHz 16Bit digital conversion. In other words, recording your bass into Pro Tools will give you exactly what you wish for and absolutely nothing else.
Maybe you need an analog preamp. The Big Head can do that too. It will provide up to 12dB of gain and better than 96 dB signal to noise ratio. Just use the headphone out jack to feed an amp or mixer. It is also a perfect match with PJB powered monitors, the PB 100 or PB 300.
It has an internal lithium-ion rechargeable battery that is fed by its USB jack, so any computer or appropriate cell phone charger can charge it in less than 3 hours, but it can play for up to 8 hours.

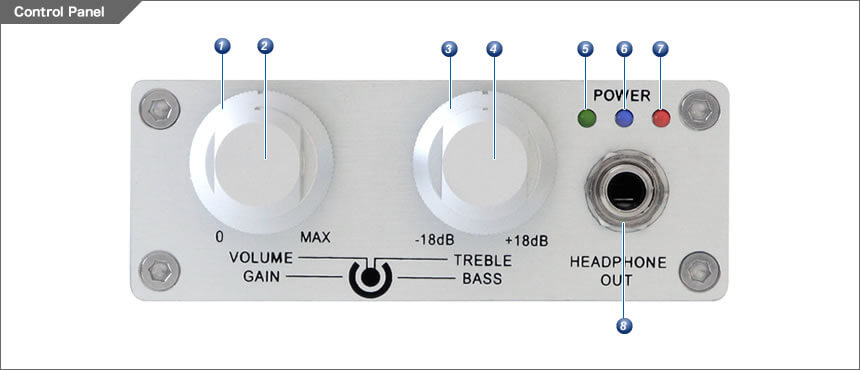

(1) Gain Control (2) Vol. Control (3) Bass EQ for Instrument Input (4) Treble EQ for Instrument Input (5) Power Charge LED (6) Power ON/OFF LED (7) Low Battery LED (8) Headphone Out 3.5mm Stereo Mini Jack

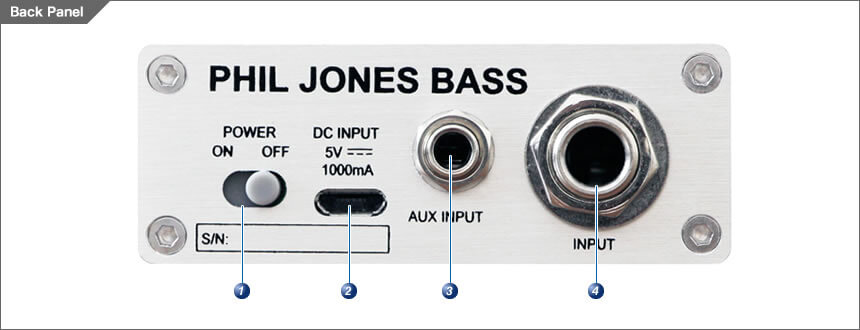

(1) Power ON/OFF Switch (2) Micro USB Connector (3) 3.5mm Stereo Mini Jack for AUX Input (4) Mono Phone Jack for Instrument Input
| Model | HA-1 |
|---|---|
| Power Output | 200mW (100mW+100mW) |
| Controls | Master Volume, Input Gain, Treble/Bass for Instrument Input, digital signal Interface |
| Power | Internal lithium-ion Rechargeable Battery or USB Power |
| Dimension | 2.5 x 5.3 x 1”/ 65 x 135 x 25 mm (WxDxH) |
| Weight | 0.5lbs / 240 g |
| Dimension | 2.5 x 5.3 x 1”/ 65 x 135 x 25 mm (WxDxH) |
